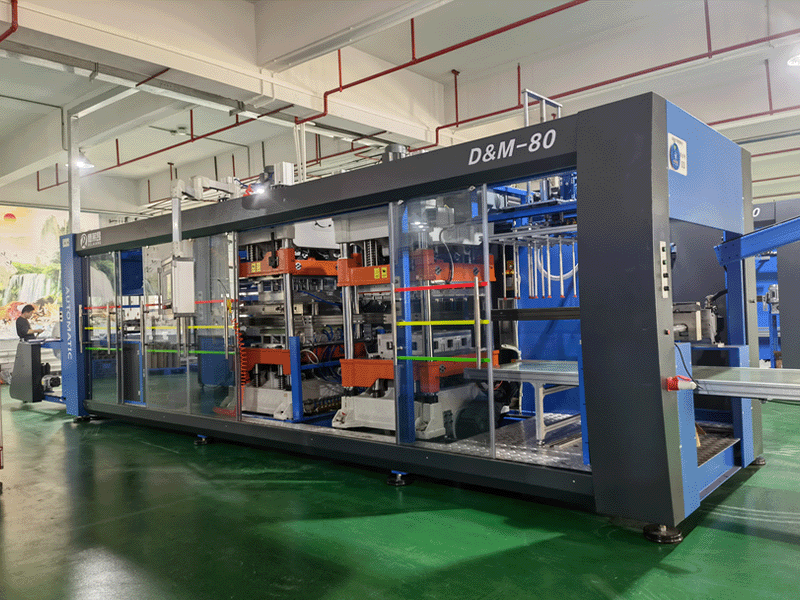

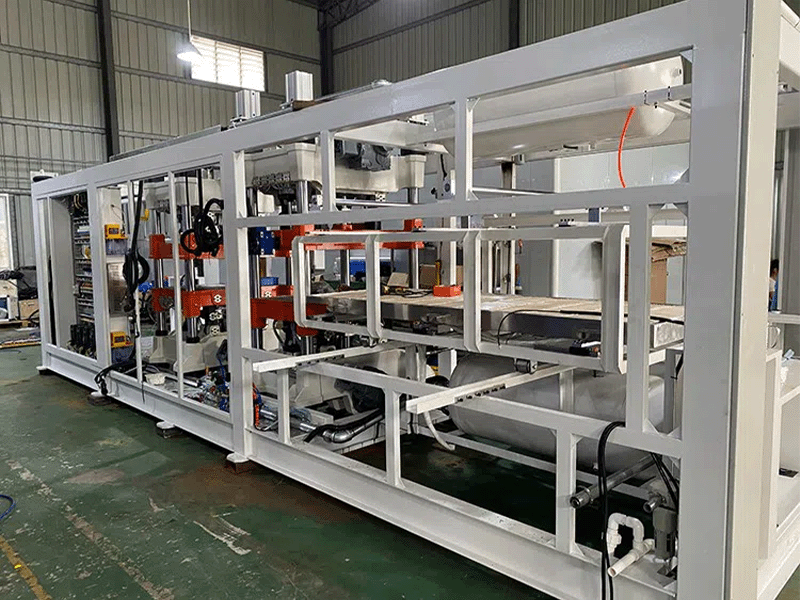

Four Stations Automatic Plastic Thermoforming Machine DM80

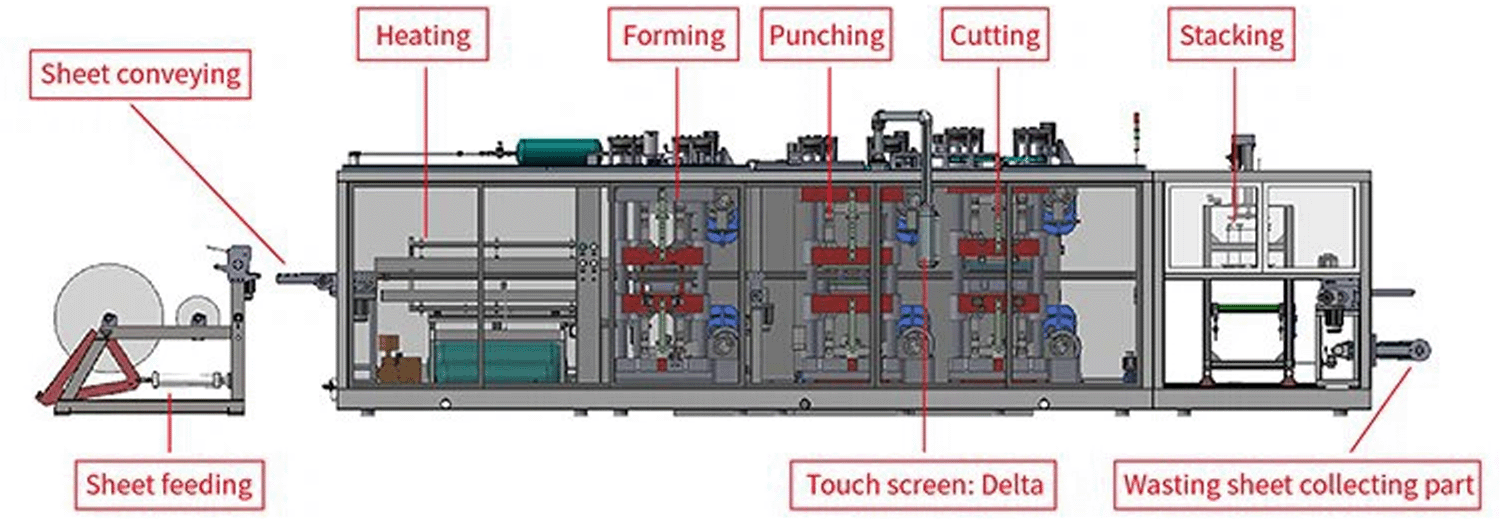

  • 1. Four stations: Vacuum pressure forming, cutting, punching, stacking
  • 2. Forming upper mold core servo control
  • 3. Outer eight models of front loading mold
  • 4. Automatic mold clamping device
  • 5. Chain track eight-character function (applicable to PP, full degradation Material with high material sag)
  • 6. German Beckhoff controller, servo drive system is Swiss ABB (motion control absolute value mode)
  • 7. Zhuanggu temperature control (computer digital temperature control, one-to-one precise temperature control temperature difference positive and negative 0.5 degrees, intelligent temperature control and 20% energy saving) 8. Chain rail electronic ruler adjustment
Contact Us



Parameter

Forming area

12500x2800mm 12 pcs 1 mould

Forming speed

20-23 recycle/min PS 0.6mm

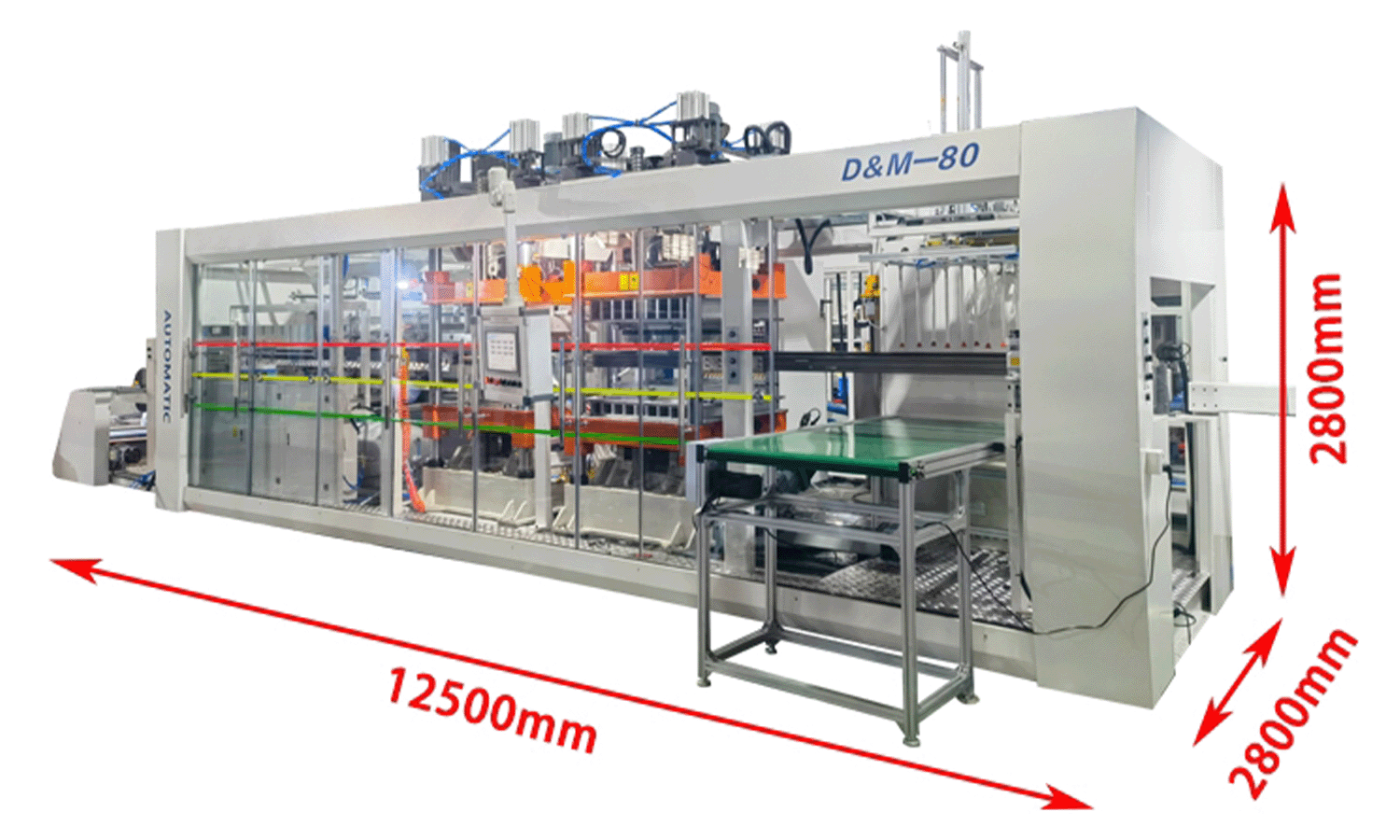

Machine size

12500x2800mm



Preheating redefined

Splitting the heating time shortens the cycle time

Increased cycle performance

Splitting the heating time improves sheet heating

Best formed part quality

Feature

  • 1. Four stations: Vacuum pressure forming, cutting, punching, stacking
  • 2. Forming upper mold core servo control
  • 3. Outer eight models of front loading mold
  • 4. Automatic mold clamping device
  • 5. Chain track eight-character function (applicable to PP, full degradation Material with high material sag)
  • 6. German Beckhoff controller, servo drive system is Swiss ABB (motion control absolute value mode)
  • 7. Zhuanggu temperature control (computer digital temperature control, one-to-one precise temperature control temperature difference positive and negative 0.5 degrees, intelligent temperature control and 20% energy saving) 8. Chain rail electronic ruler adjustment
140x140
140x140

140x140
140x140
140x140

Application

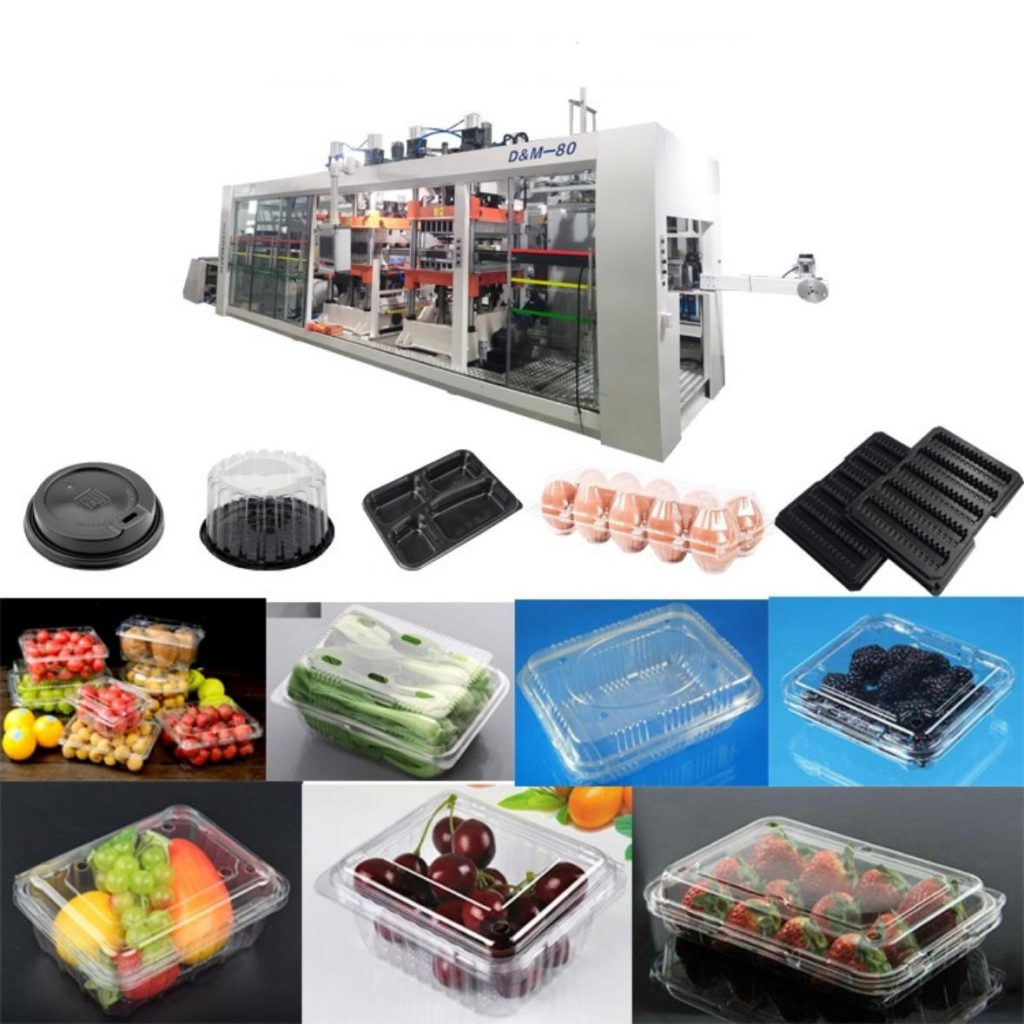

This Four Stations Automatic PVC thermoforming machine can be widely used in the production and production of all kinds of disposable plastic light containers and plastic products. Such as: instant noodle bowl, fruit box, fast food box, pastry box, electronic tray, hardware, daily necessities packaging box, etc.
